UHV/VSC-HVDC Transmission Converter Valve

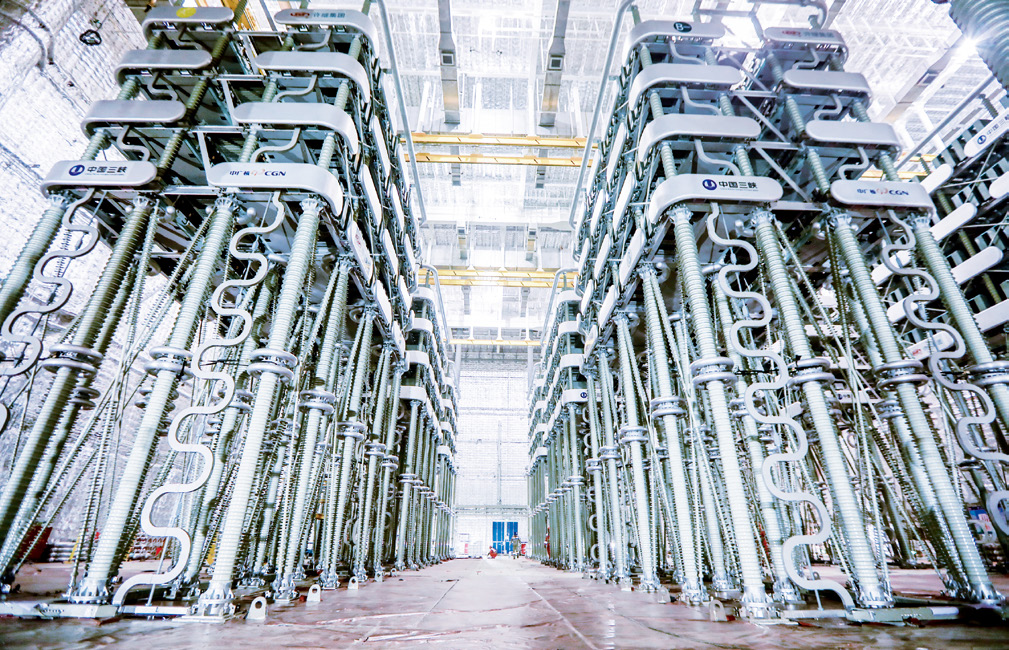

The VSC-HVDC transmission converter valve adopts fully controlled high-power IGBT devices based on modular multilevel converter (MMC) topology to realize independent control of active power and reactive power. It features air insulation, deionized water cooling and double-row support structure.
Application Scenarios
It is suitable for converter stations below 800kV and 5000A, and meets the needs of HV long-distance DC transmission, new energy grid connection, AC power grid asynchronous interconnection, offshore wind power and other scenarios.
Technical Features
Low-loss and compact technology
Black-module multi-level bypass protection technology
Cross redundant communication and dual power supply technology
Double-row valve tower structure and maintenance platform technology
Series-parallel design of water circuits, offering high cooling efficiency
Intelligent online monitoring technology
Basic Parameters
Voltage class
±800kV and below
Current class
5000A projects are currently being planned
Valve tower structure
Determine the number of valve towers per bridge arm according to the voltage class and the number of power modules on each bridge arm
Testing and Certifications
CNAS
